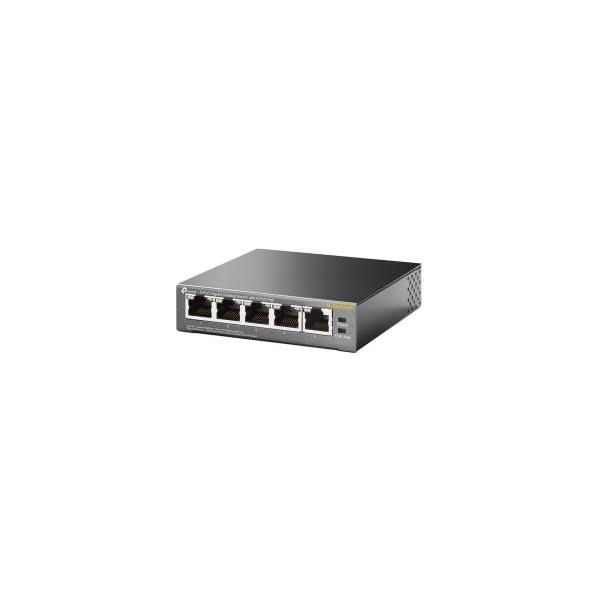

TP-Link TL-SG1005P 5-Port Gigabit Ethernet preklopnik PoE

– PoE Switches for Your Ultra Convenience
– Power over Ethernet
* 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function
* These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs)
– Intelligent Power Management
* When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority ports power supply and protect the device from power overload operation
– Advanced Functions for Higher Performance
* Qos For Fluent Online Experience (Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free)
* IGMP Snooping Traffic Optimization for IPTV (IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV)
– Sturdy Metal Casing

Features
– 5× 10/100/1000Mbps RJ45 ports
– With four PoE ports, transfers data and power on one single cable
– Working with IEEE 802.3af compliant PDs, expands home and office network
– 802.1p/DSCP QoS enable smooth latency-sensitive traffic
– Supports PoE Power up to 15.4W for each PoE port
– Supports PoE Power up to 56W for all PoE ports
– Requires no configuration and installation

Specifications
HARDWARE FEATURES
– Interface:
* 5 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
– Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
– Fan Quantity: Fanless
– External Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
– PoE Ports (RJ45):
* Standard: 802.3 af compliant
* PoE Ports: Port1- Port4
* Power Supply: 56W
– Backbound Bandwidth: 10Gbps
– Mac Address Table: 2K
– Dimensions (W×D×H): 99.8×98×25 mm
– Max Power Consumption:
* 3.95W (220/50Hz. no PD connected)
* 64.44W (220/50Hz. with 56W PD connected)
– Max Heat Dissipation:
* 13.48BTU/h (no PD connected)
* 219.87BTU/h (with 56W PD connected)

SOFTWARE FEATURES
– Advanced Features:
* Compatible With IEEE 802.3af Compliant PDs
* Priority Function
* Mac Address Auto-Learning And Auto-Aging
* IEEE 802.3x Flow Control
* 802.1p/DSCP QoS
* IGMP Snooping
– Transfer Method: Store-And-Forward

OTHERS
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% RH non-condensing
* Storage Humidity: 5% – 90% RH non-condensing
– Consumption:
* 4.26 watts (max. no PD connected)
* 63.31 watts (max. with 56w PD connected)
– Certification: FCC, CE, RoHS
– Package Contents: TL-SG1005P, Power Adapter, Installation Guide
