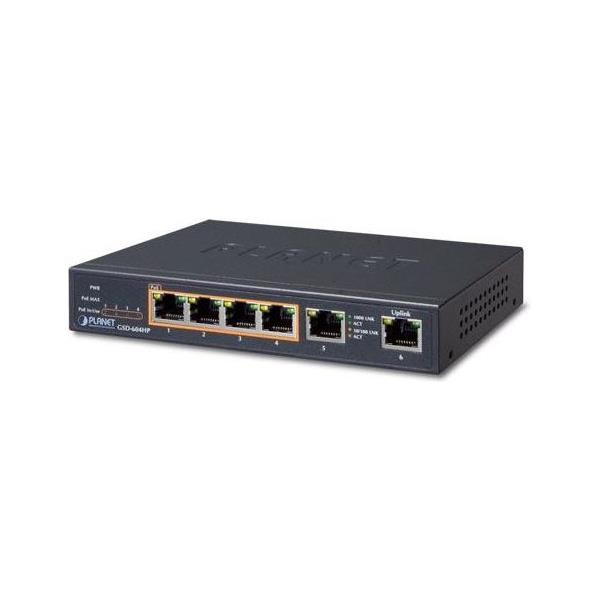

Planet 4 Gig 802.3at PoE Ports 2 Port Gig Switch

Key Features
RJ45 INTERFACE
– 6× 10/100/1000Mbps Gigabit Ethernet ports
– 4× ports support 54V DC power to PoE powered device

POWER OVER ETHERNET
– Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
– Up to 4 IEEE 802.3af/at devices powered
– Supports PoE power up to 30 watts for each PoE port
– 55-watt PoE budget
– Auto detects powered device (PD)
– Circuit protection prevents power interference between ports
– Remote power feeding up to 100m

SWITCHING
– Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
– Flow control for full duplex operation and back pressure for half duplex operation
– 9216 bytes jumbo packet size support
– Integrates address look-up engine, supporting 8K absolute MAC addresses
– Automatic address learning and address aging
– Supports port-based VLAN and loop protection

HARDWARE
– LED indicators for PoE ready and LINK/ACT
– One 55V DC power jack

Specifications
HARDWARE SPECIFICATIONS
– Network Connector: 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX
– PoE Inject Port: 4-port with 802.3af/at PoE injector function (port 1 to port 4)
– LED Display:
* System: Power (Green)
* Per PoE port: PoE (Orange, port 1 to port 4), PoE max. (Orange)
* Ethernet port: 1000 LNK (Green), 10/100 LNK (Orange)
– Thermal Fan: Fanless design
– Switch Architecture: Store and Forward switch architecture
– MAC Address Table: 8K MAC address table with auto learning function
– Switch Fabric: 12Gbps
– Switch Throughput: 8.92Mpps @64 bytes
– Jumbo Packet: 9216 bytes
– Flow Control:
* Back pressure for half-duplex
* IEEE 802.3x pause frame for full-duplex
– Power Requirements: 55V DC, 1.1A
– ESD Protection: 6kV DC
– Power Consumption: Max. 60 watts, 204.6 BTU
– Dimensions (W×D×H): 160×92.5×28 mm
– Weight: 374 g

POWER OVER ETHERNET
– PoE Standard:
* IEEE 802.3af Power over Ethernet/PSE
* IEEE 802.3at Power over Ethernet Plus/PSE
– PoE Power Supply Type: End-span
– Power Pin Assignment: 1/2(+), 3/6(-)
– PoE Power Output:
* Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
* Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
– PoE Power Budget: 55 watts

STANDARD CONFORMANCE
– EMI Safety: FCC Class B, CE
– Standard Compliance:
* IEEE 802.3 Ethernet
* IEEE 802.3u Fast Ethernet
* IEEE 802.3ab Gigabit Ethernet
* IEEE 802.3x Flow Control
* IEEE 802.3af Power over Ethernet
* IEEE 802.3at Power over Ethernet Plus

ENVIRONMENT
– Operating Environment: 0 to 50 degrees C
– Storage Environment: -10 to 70 degrees C
– Operating Humidity: 5% – 95%, relative humidity, non-condensing
– Storage Humidity: 5% – 95%, relative humidity, non-condensing
