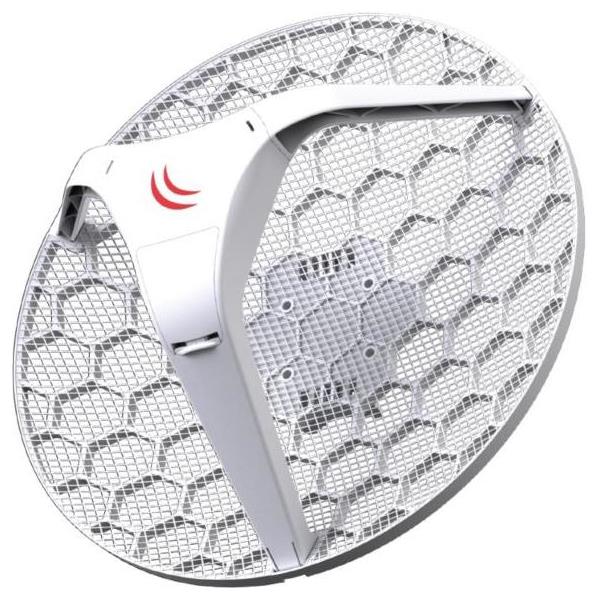

– The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna
– LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances
– The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables
– LHG HP5 supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
Specifications
– Architecture: MIPSBE
– CPU: AR9344
– CPU core count: 1
– CPU nominal frequency: 600 MHz
– Dimensions: fi 391×222 mm
– License level: 3
– Operating System: RouterOS
– Size of RAM: 64 MB
– Storage size: 16 MB
– Storage type: FLASH
– Tested ambient temperature: -40C to +70C
POWERING
– Max Power consumption: 7W
– PoE in: Passive PoE
– PoE in input Voltage: 10-28 V
– Number of DC inputs: 1 (PoE-IN)
WIRELESS
– Wireless 5 GHz number of chains: 2
– Wireless 5 GHz standards: 802.11a/n
– Antenna gain dBi for 5 GHz: 24.5
– Wireless 5 GHz chip model: AR9344
ETHERNET
– 10/100 Ethernet ports: 1
INCLUDED PARTS
– 24V 0.38A power adapter
– Metal rings (two)
– PoE injector
– K-LHG kit
