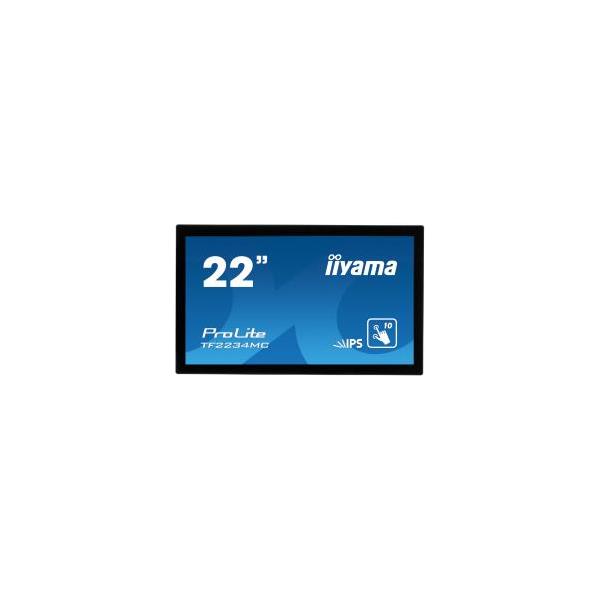

IIYAMA 22″ ProLite TF2234MC-B7X (21.5″) Full HD (1920×1080) IPS LED, 10P Touchscreen Open Frame, 8ms, 305cd/m2, VGA/DP/HDMI, crni, TF2234MC-B7X

– 10pt touch Open Frame monitor with IPS panel
– ProLite TF2234MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass
– Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage
– In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant
– Equipped with a rugged bezel making it suitable for demanding environments
– The ProLite TF2234MC is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations

IPS
– IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology
– The screen will look good no matter what angle you look at it

TOUCH TECHNOLOGY – CAPACITIVE
– This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen
– Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass
– Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched
– It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen

OPEN FRAME BRACKETS
– This open frame monitor comes equipped with external mounting brackets
– It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail

SCRATCH RESISTANCE
– Scratch resistance is essential for touch solutions used in public places and schools
– This is achieved thanks to a glass overlay covering the screen
– It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched

ANTI-FINGERPRINT COATING
– This special Nano coating ensures a smoother touch and less resistance in the swipe
– It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen

Specifications
DISPLAY CHARACTERISTICS
– Design: Open Frame
– Diagonal: 21.5″ (55 cm)
– Panel: IPS LED
– Native resolution: 1920×1080 (2.1 megapixel Full HD)
– Aspect ratio: 16:9
– Brightness: 350 cd/m2 typical / 305 cd/m2 with touch
– Static contrast: 1000:1 with touch
– Light transmittance: 87%
– Response time: 8 ms
– Viewing zone: 178° (H)/178° (V), Right/Left: 89°/89°, Up/Down: 89°/89°
– Colour support: 16.7mln 8bit (6bit + Hi-FRC)
– Horizontal / Vertical Sync: 30.0 – 84.0KHz / 56 – 76Hz
– Viewable area (W×H): 476.6×268.1 mm, 18.8×10.6″
– Pixel pitch: 0.247 mm
– Bezel colour and finish: black, matte

TOUCH
– Touch technology: projective capacitive
– Touch points: 10 (HID, only with supported OS)
– Touch method: stylus, finger, glove (latex)
– Touch interface: USB
– Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux
* For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section

INTERFACES / CONNECTORS / CONTROLS
– Analog signal input: VGA ×1
– Digital signal input: HDMI ×1, DisplayPort ×1
– HDCP: Yes

FEATURES
– Extra: anti-fingerprint coating
– Glass thickness: 1.5 mm
– Glass hardness: 7H
– Water and dust protection: IP65 (front)
– OSD key lock: Yes

GENERAL
– Control buttons: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
– User controls: picture (contrast, brightness, auto adjust, H.position, V.position, H.size, phase, clock, auto adjust), advanced (color temp., sharpness), – OSD (time out, position, H-position, V-position), option (reset, language, source select, display mode, factory)
– Plug&Play: DDC2B

MECHANICAL
– Orientation: landscape, portrait, face-up
– VESA mounting: 100×100 mm

ACCESSORIES INCLUDED
– Cables: power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
– Guides: quick start guide, safety guide
– Other: AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket
– Cable cover: Yes

POWER MANAGEMENT
– Power supply unit: external
– Power supply: DC 12 V
– Power usage: 18W typical, 1W stand by, 1W off mode

SUSTAINABILITY
– Regulations: CE, TUV-Bauart, CU, cULus, VCCI
– Other: REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT
– Product dimensions (W×H×D): 517.5×313.5×46 mm
– Weight (without box): 4.4 kg
