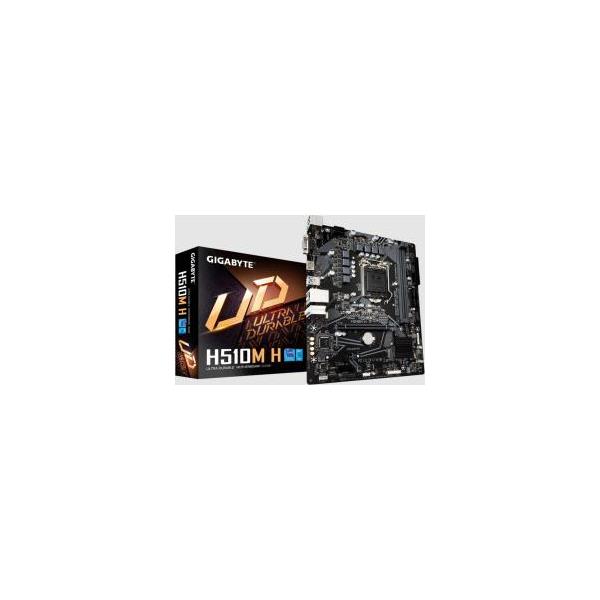

Gigabyte MB H510M H, S.1200, DDR4/3200, PCIe, M.2, G-LAN, VGA/HDMI, mATX

Features
– Supports 11th and 10th Gen Intel Core Series Processors
– Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
– Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
– GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
– High Quality Audio Capacitors and Audio Noise
– Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
– GIGABYTE APP Center, Simple and Easy Use
– Anti-Sulfur Resistors Design

Specifications
CPU
– 11th Generation Intel Core i9/i7//i5/i3, Intel Pentium processors, Intel Celeron processors
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family
– L3 cache varies with CPU

CHIPSET
– Intel H510 Express Chipset

MEMORY
– 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
– 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
– 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules
– Dual channel memory architecture
– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for Extreme Memory Profile (XMP) memory modules

ONBOARD GRAPHICS
– Integrated Graphics Processor:
1× D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1× HDMI port, supporting a maximum resolution of 4096×2160@30 Hzz
* Support for HDMI 1.4 version and HDCP 2.3

AUDIO
– Realtek audio codec
– High Definition Audio
– 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings (Playback Device to change the default setting first)

LAN
– Realtek GbE LAN chip (1 Gbit/100 Mbit)

EXPANSION SLOTS
– 1× PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard)
– 2× PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard)

STORAGE INTERFACE
– 1× M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
– 4× SATA 6Gb/s connectors
* Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors

USB
– 4× USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 6× USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 8-pin ATX 12V power connector
1× CPU fan header
1× system fan header
1× RGB LED strip header
1× M.2 Socket 3 connector
4× SATA 6Gb/s connectors
1× front panel header
1× front panel audio header
1× USB 3.2 Gen 1 header
1× USB 2.0/1.1 header
1× Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1× serial port header
1× Clear CMOS jumper

BACK PANEL CONNECTORS
1× PS/2 keyboard/mouse port
1× D-Sub port
1× HDMI port
2× USB 3.2 Gen 1 ports
4× USB 2.0/1.1 ports
1× RJ-45 port
3× audio jacks

I/O CONTROLLER
– iTE I/O Controller Chip

H/W MONITORING
– Voltage detection
– Temperature detection
– Fan speed detection
– Fan fail warning
– Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install

BIOS
– 1× 256 Mbit flash
– Use of licensed AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

FORM FACTOR
– Micro ATX Form Factor (24.4×21.0 cm)
