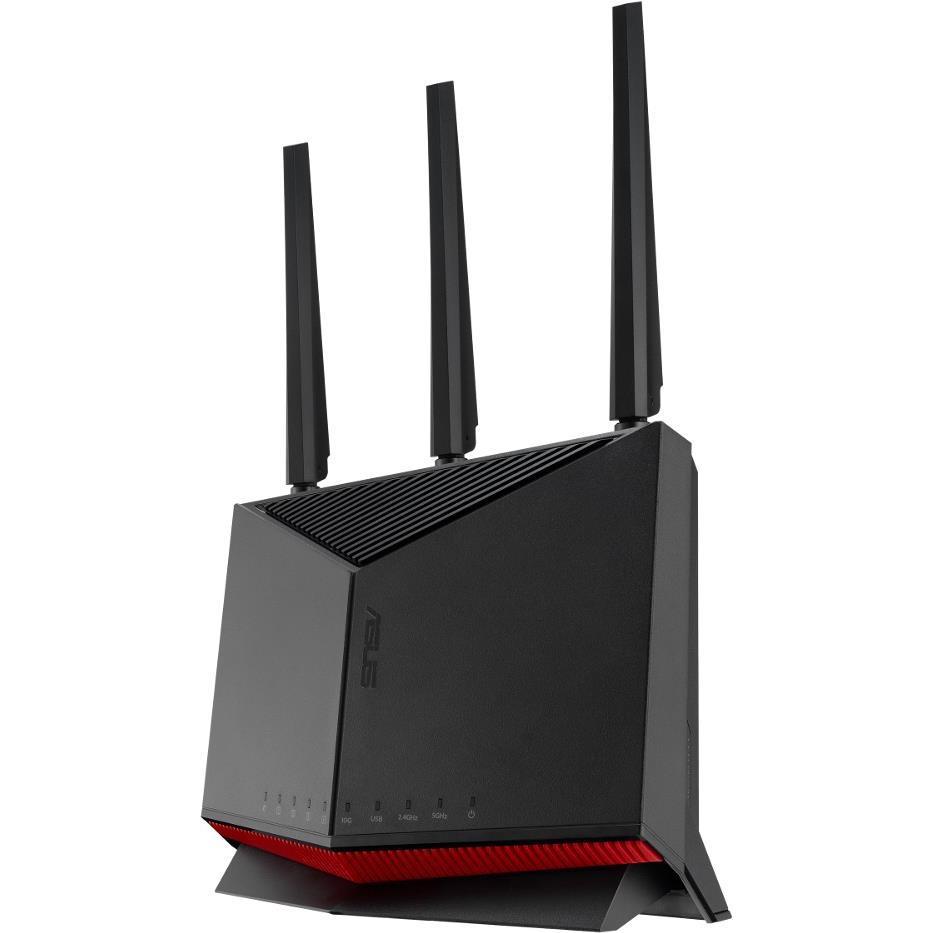

Asus RT-BE86U, BE6800, Dual Band WiFi 7 Router

Model: RT-BE86U

Priključci: 1 x 10G for WAN/LAN

1 x 2.5G for WAN/LAN

3 x 2.5G for LAN

USB 3.2 Gen1 x1

USB 2.0 Gen1 x1

Protokol: IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

Antena: Tri vanjske antene

Jedna unutarnja antena

Mod rada: Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

Prijenos podataka: WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Radna frekvencija: 2.4 GHz

5 GHz

Karakteristike: Procesor: 2.6GHz quad-core processor

Memorija: 256 MB Flash, 1 GB RAM

Podešavanje i upravljanje: WEB: ASUSWRT

APP: ASUS Router APP

Sigurnost: AiProtection

VPN

WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System i OWE

WPS

Let’s Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

Napajanje: AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 5 A current ; 19.5 V with max. 2.31 A current

Wireless karakteristike: MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

Dimenzije i masa: 235 x 90 x 316 mm

854 g

Ostalo: Tipke: WPS Button, Reset Button, Power Switch, LED on/off Button

LED indikatori: WAN x1

10G Port x1

LAN x4

USB x1

2.4GHz x1

5GHz x1

Power x1

VPN: Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

WAN: Internet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

WAN Aggregation

3G / 4G LTE dongle

Port forwarding

• Maximum Port Forwarding Rule : 64

Port triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• SIP Pass-Through

• PPPoE Relay

LAN: DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

USB: File System :

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

Napomena: Više detalja o proizvodu možete pogledati ovdje.
