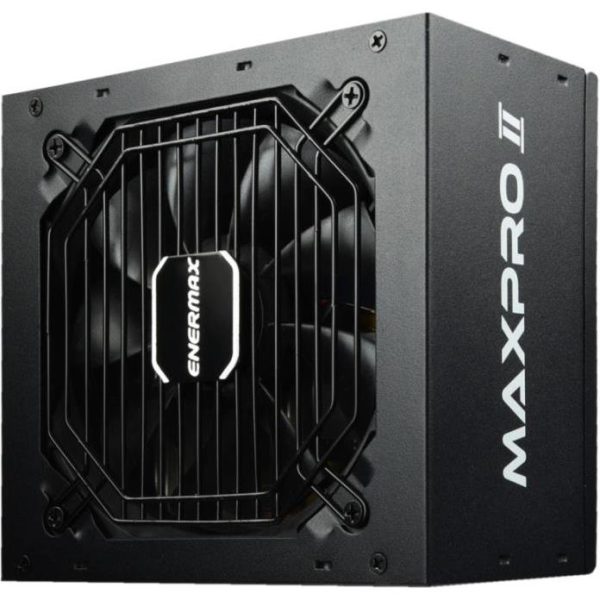

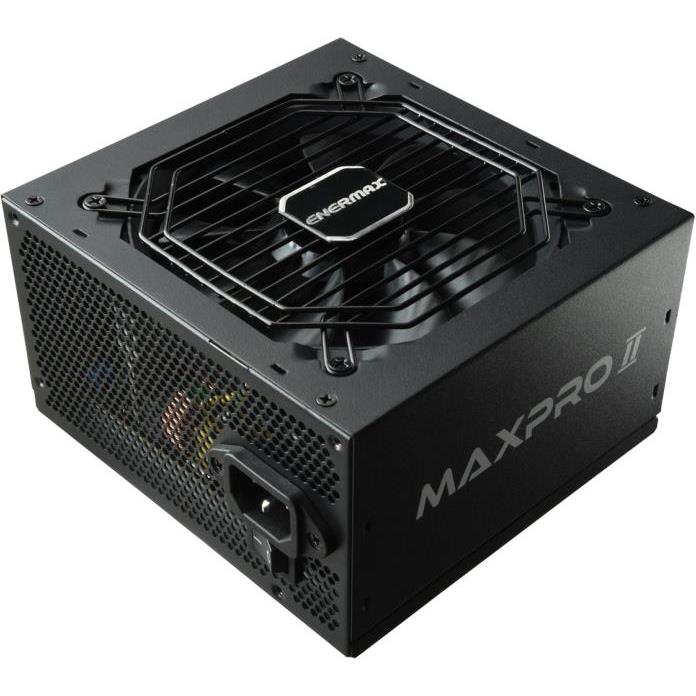

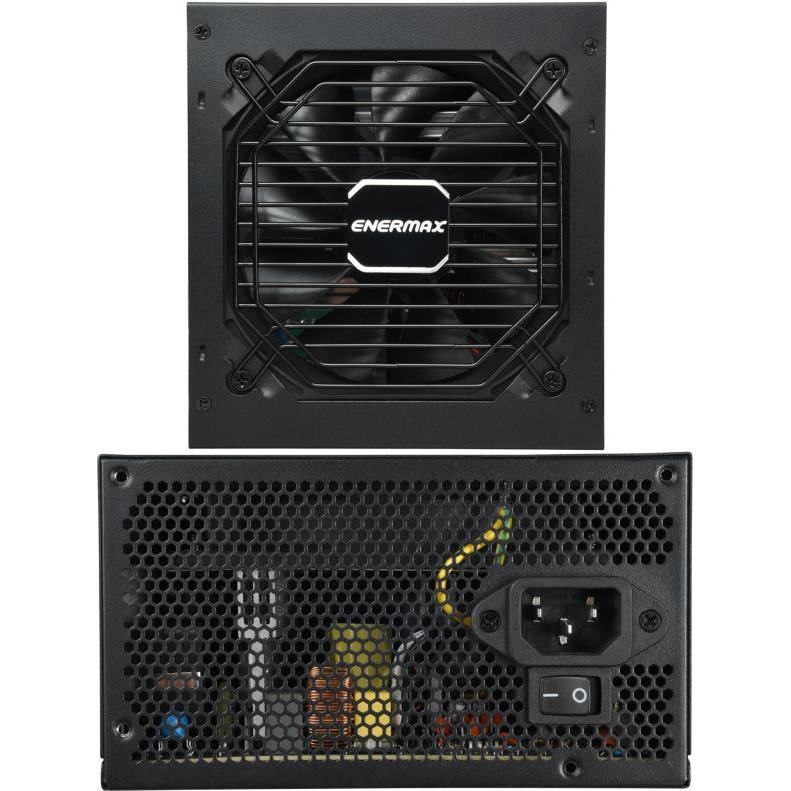

Enermax 700W MaxPro II, ATX 2.3, 80+, aktivan PFC, 2×PCIe, 6×SATA, 24-pina, 120mm ventilator

Raspoloživost:

Dostupno uz narudžbu


Dostupno u poslovnicama:
Webshop
Ista cijena za sve načine plaćanja!

66,90

Odaberi gotovinsko ili plaćanje po ponudi i zgrabi dodatnih 5% popusta na istaknutu cijenu!

Dostupno uz narudžbu

– The Enermax MAXPRO II series is one of Enermaxs longrunner power supplies
– Developed specifically for the European market, MAXPRO II is characterized by low noise and efficient operation
– With 87% peak efficiency (80 PLUS 230V EU certified) and a standby consumption of less than 0.5 watts, the power supply meets the European Union eco-design directive 2013 ErP Lot 6 and 2014 ErP Lot 3 and the European Union regulation no. 617/2013
– The 120 mm high pressure fan with the patented Twister Bearing ensures quiet and efficient cooling
– The SafeGuard multiple safety system protects the power supply and system from damage
– The MAXPRO II power supplies are true longrunners and are designed for 24-hour continuous operation at an ambient temperature of 40C

Technical Specifications
OVERVIEW
– PSU Design: Single rail, non modular
– PSU Length: 140mm
– Intel ATX12V: 2.3
– Non-Stop 24/7: @ 40C
– 2010 ErP Lot 6: Yes
– 2013 ErP Lot 6: Yes
– 2014 ErP Lot 3: Yes
– EU regulation no. 617/2013: Yes
– Intel C6/C7: Yes
– Fan Size: 120mm
– Fan Technology: Twister Bearing, 160.000h MTBF
– Protections: SCP, OVP, UVP, OPP, SIP
* SCP: short circuit protection, OVP: over voltage protection, UVP: under voltage protection, OPP: over power protection, SIP: surges and inrush current protection
– Certifications: CB, CE, CCC, KCC, RCM
– Included in the delivery: PSU, AC cord, 4 screws, user manual

POWER DISTRIBUTION
– AC Input Voltage: 200-240VAC, 47-63Hz
– AC Input Current: 4A
– DC Output:
* +3.3V – 20A – 120W
* +5V – 20A – 120W
* +12V – 55A – 660W
* -12A – 0.3A – 3.6W
* 5V – 2.5A – 12.5W
– Total Power: 700W

CABLES & CONNECTORS
– Mainboard 24-pin: 1× 50cm
– CPU 4+4-pin: 1× 60cm
– PCI-E 6+2-pin (8-pin): 4× 60cm
– SATA: 6×
– 4-pin Molex: 3×

EFFICIENCY & NOISE LEVEL
– 10% load @ 230V: Efficiency: 82%, Noise Level: 14.7dB(A)
– 20% load @ 230V: Efficiency: 87%, Noise Level: 14.7dB(A)
– 50% load @ 230V: Efficiency: 88%, Noise Level: 17.3dB(A)
– 100% load @ 230V: Efficiency: 84%, Noise Level: 27.5dB(A), Power Factor: 0.98

OTHER
– Product Dimensions: 140×150×86 mm
– Product Weight: 1.7 kg
